T8116NL

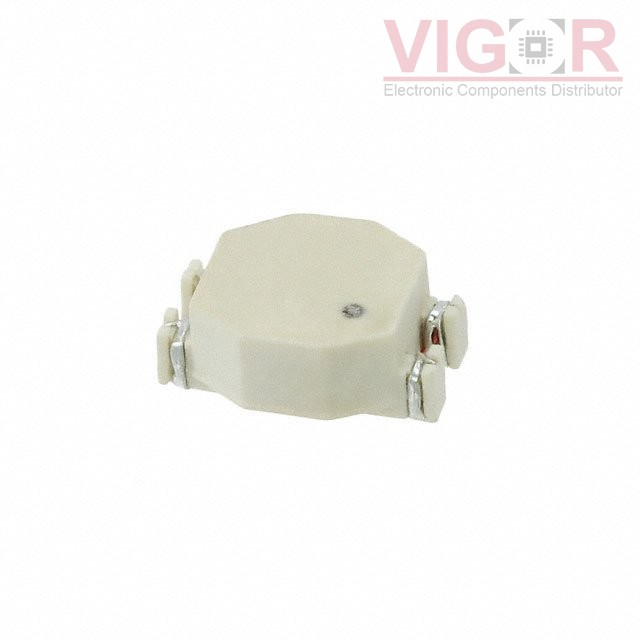

Image is for reference,
please contact us to get the real picture

Part No :: T8116NL

Manufacturer: PulseLarsen Antenna

Description: CMC 470UH 700MA 2LN 800 OHM SMD

Catalog: Common Mode Chokes

DataSheet: T8116NL PDF

Availability: 0 pieces

Unit Price: ~~$1.33455~~

Current price of T8116NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T8116NL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	800 Ohms @ 100 MHz
Inductance @ Frequency:	470 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	700mA
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.350" L x 0.248" W (8.90mm x 6.30mm)
Height (Max):	0.161" (4.10mm)
Package / Case:	Horizontal, 4 PC Pad
