SC-15-05J

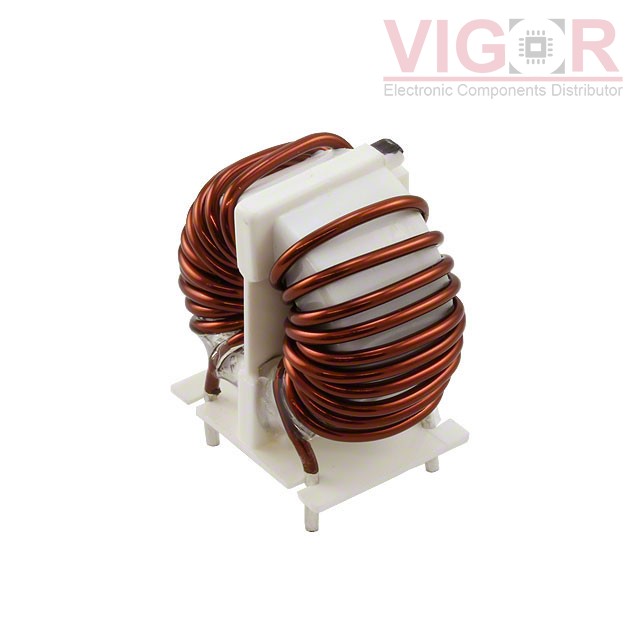

Image is for reference,
please contact us to get the real picture

Part No :: SC-15-05J

Manufacturer: KEMET

Description: CMC 500UH 15A 2LN TH

Catalog: Common Mode Chokes

DataSheet: SC-15-05J PDF

Availability: 0 pieces

Unit Price: ~~$7.71000~~

Current price of SC-15-05J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC-15-05J Specifications

Type	Description
Series:	SC
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	500 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	15A
DC Resistance (DCR) (Max):	8mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max):	1.299" (33.00mm)
Package / Case:	Vertical, 4 PC Pin
