ACP3225-501-2P-TL000

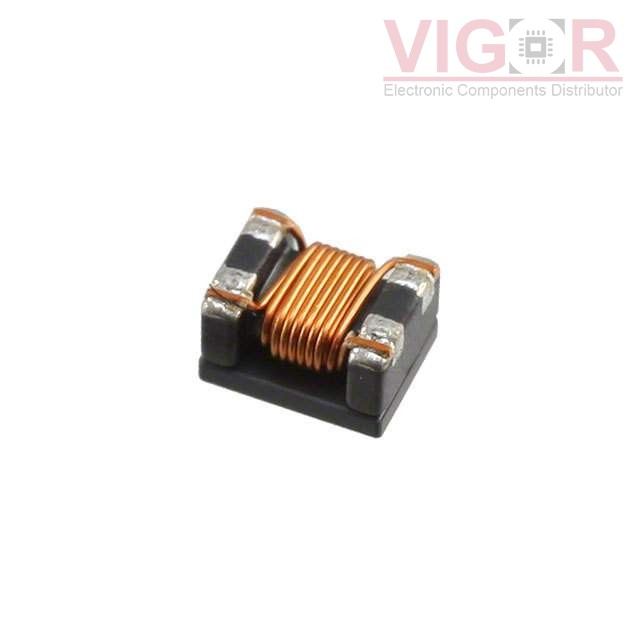

Image is for reference,
please contact us to get the real picture

Part No :: ACP3225-501-2P-TL000

Manufacturer: TDK Corporation

Description: CMC 2A 2LN 500 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ACP3225-501-2P-TL000 PDF

Availability: 0 pieces

Unit Price: ~~$0.46935~~

Current price of ACP3225-501-2P-TL000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACP3225-501-2P-TL000 Specifications

Type	Description
Series:	ACP
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	500 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	40mOhm
Voltage Rating - DC:	60V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max):	0.079" (2.00mm)
Package / Case:	Horizontal, 4 PC Pad
