MCZ1210AH201L2

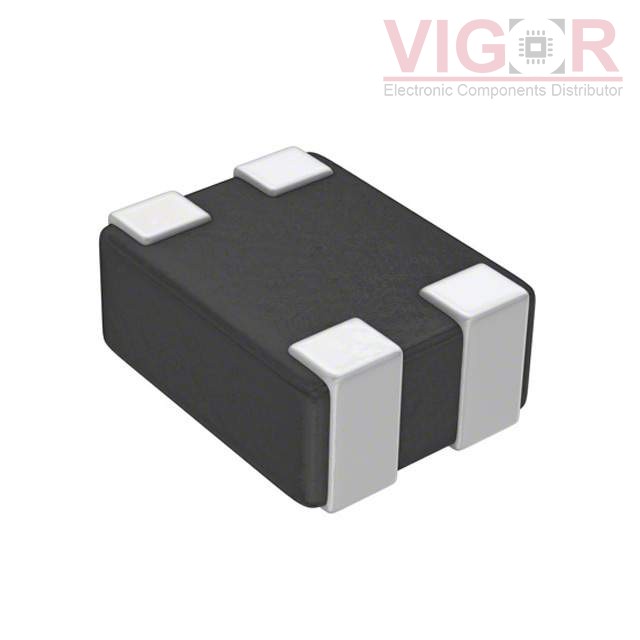

Image is for reference,
please contact us to get the real picture

Part No :: MCZ1210AH201L2

Manufacturer: TDK Corporation

Description: CMC 100MA 2LN 200 OHM SMD

Catalog: Common Mode Chokes

DataSheet: MCZ1210AH201L2 PDF

Availability: 3327 pieces

Unit Price: ~~$0.50000~~

Current price of MCZ1210AH201L2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCZ1210AH201L2 Specifications

Type	Description
Series:	MCZ-AH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	200 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	4Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max):	0.024" (0.60mm)
Package / Case:	0504 (1210 Metric), 4 Lead
