SC-01-80G

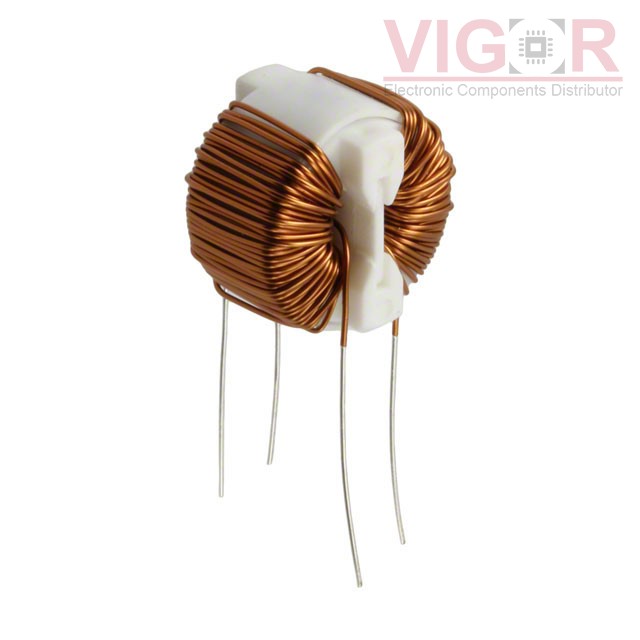

Image is for reference,
please contact us to get the real picture

Part No :: SC-01-80G

Manufacturer: KEMET

Description: COMMON MODE CHOKE 8MH 1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: SC-01-80G PDF

Availability: 0 pieces

Unit Price: ~~$4.09000~~

Current price of SC-01-80G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC-01-80G Specifications

Type	Description
Series:	SC
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	8 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max):	0.689" (17.50mm)
Package / Case:	Vertical, No Base, 4 PC Pin
