ACM4520V-231-2P-TL00

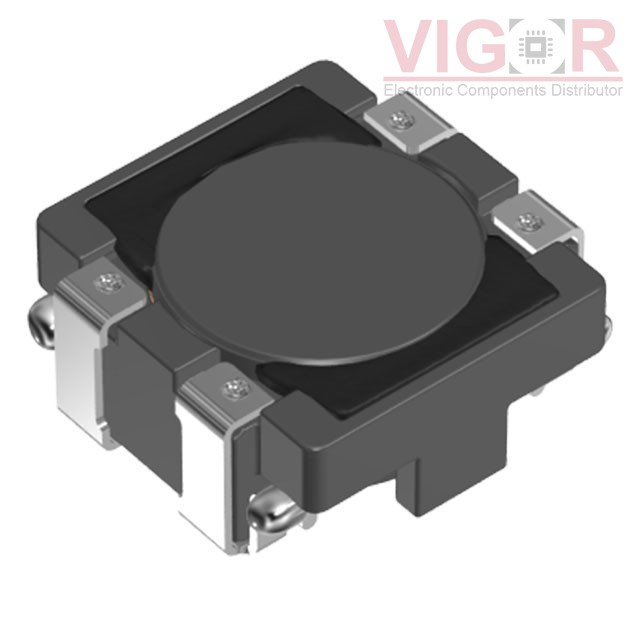

Image is for reference,
please contact us to get the real picture

Part No :: ACM4520V-231-2P-TL00

Manufacturer: TDK Corporation

Description: CMC 1.5A 2LN 230OHM SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: ACM4520V-231-2P-TL00 PDF

Availability: 0 pieces

Unit Price: ~~$0.65100~~

Current price of ACM4520V-231-2P-TL00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACM4520V-231-2P-TL00 Specifications

Type	Description
Series:	ACM-V
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	230 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	50mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max):	0.079" (2.00mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
