ACT45B-110-2P-TL003

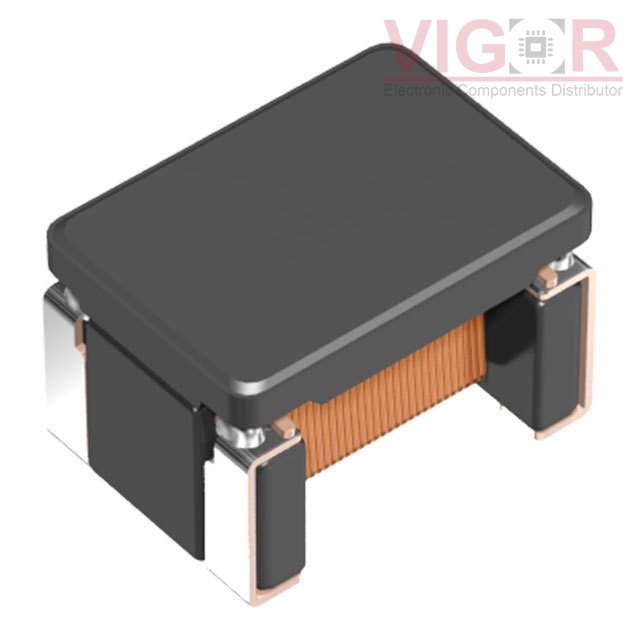

Image is for reference,
please contact us to get the real picture

Part No :: ACT45B-110-2P-TL003

Manufacturer: TDK Corporation

Description: CMC 11UH 250MA 2LN SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: ACT45B-110-2P-TL003 PDF

Availability: 21658 pieces

Unit Price: ~~$1.95000~~

Current price of ACT45B-110-2P-TL003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACT45B-110-2P-TL003 Specifications

Type	Description
Series:	ACT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	600 Ohms @ 10 MHz
Inductance @ Frequency:	11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	250mA
DC Resistance (DCR) (Max):	600mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.118" (3.00mm)
Package / Case:	Horizontal, 4 PC Pad
