SRF4532-220Y

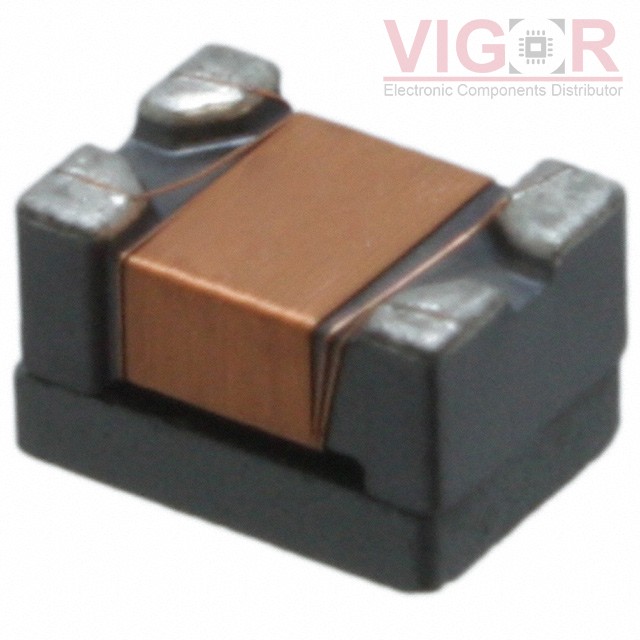

Image is for reference,
please contact us to get the real picture

Part No :: SRF4532-220Y

Manufacturer: J.W. Miller / Bourns

Description: CMC 22UH 200MA 2LN 1 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: SRF4532-220Y PDF

Availability: 11586 pieces

Unit Price: ~~$0.79000~~

Current price of SRF4532-220Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRF4532-220Y Specifications

Type	Description
Series:	SRF4532
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	1 kOhms @ 10 MHz
Inductance @ Frequency:	22 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	200mA
DC Resistance (DCR) (Max):	2.65Ohm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.118" (3.00mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
