SU9H-10005

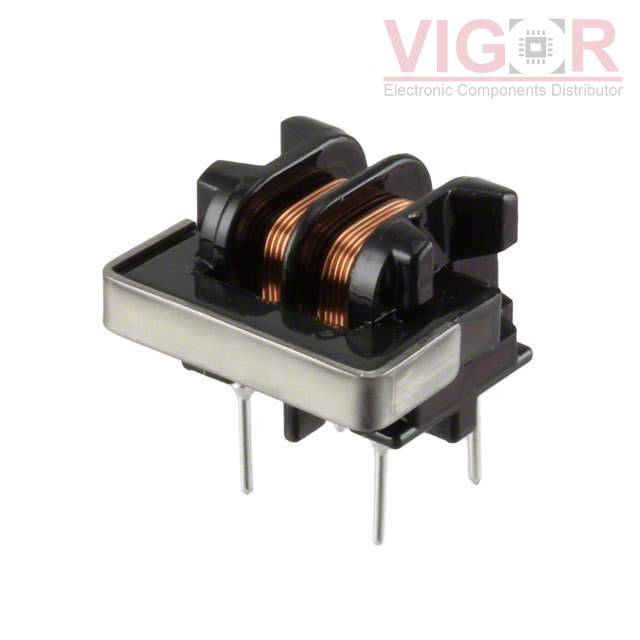

Image is for reference,
please contact us to get the real picture

Part No :: SU9H-10005

Manufacturer: KEMET

Description: CMC 500UH 1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: SU9H-10005 PDF

Availability: 748 pieces

Unit Price: ~~$1.82000~~

Current price of SU9H-10005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SU9H-10005 Specifications

Type	Description
Series:	SU
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	500 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max):	0.492" (12.50mm)
Package / Case:	Vertical, 4 PC Pin
