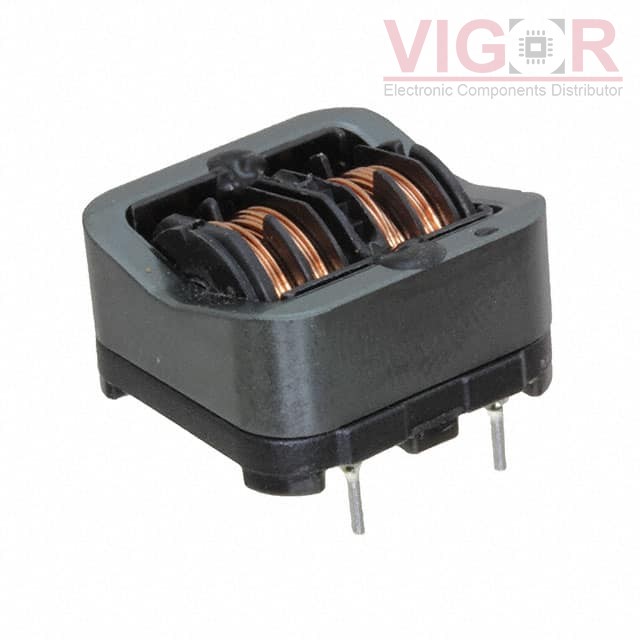

SSR21NHS-M18125

Image is for reference,
please contact us to get the real picture

Part No :: SSR21NHS-M18125

Manufacturer: KEMET

Description: CMC 12.5MH 1.8A 0.19OHM WIDE IMP

Catalog: Common Mode Chokes

DataSheet: SSR21NHS-M18125 PDF

Availability: 240 pieces

Unit Price: ~~$2.99000~~

Current price of SSR21NHS-M18125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSR21NHS-M18125 Specifications

Type	Description
Series:	SSR
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	12.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.8A
DC Resistance (DCR) (Max):	190mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max):	0.571" (14.50mm)
Package / Case:	Vertical, 4 PC Pin
