744835150072

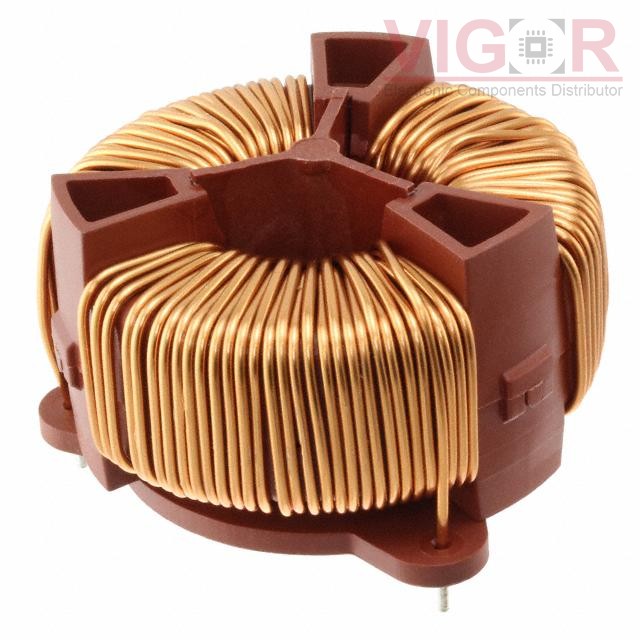

Image is for reference,
please contact us to get the real picture

Part No :: 744835150072

Manufacturer: Würth Elektronik Midcom

Description: CMC 15MH 7.2A 3LN TH

Catalog: Common Mode Chokes

DataSheet: 744835150072 PDF

Availability: 0 pieces

Unit Price: ~~$35.82000~~

Current price of 744835150072 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744835150072 Specifications

Type	Description
Series:	WE-TPBHV
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	15 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	7.2A
DC Resistance (DCR) (Max):	85mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	760V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.756" Dia (70.00mm)
Height (Max):	1.535" (39.00mm)
Package / Case:	Horizontal, 6 PC Pin
