B82725S2103N003

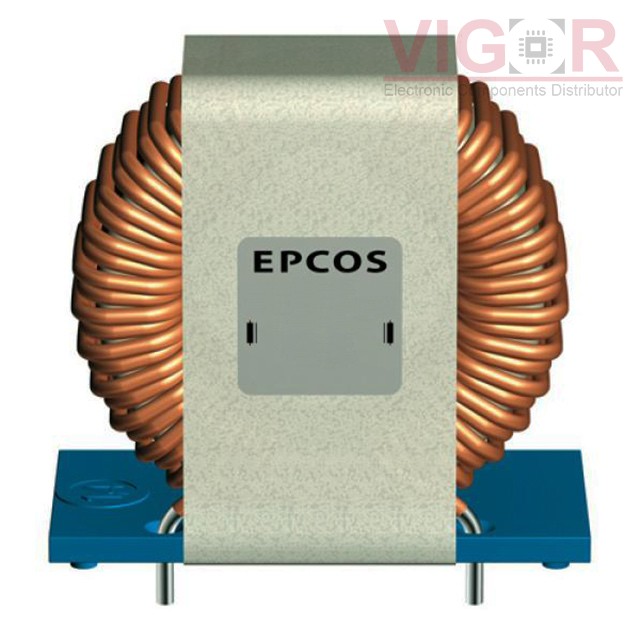

Image is for reference,
please contact us to get the real picture

Part No :: B82725S2103N003

Manufacturer: TDK EPCOS

Description: CMC 2.8MH 10A 2LN TH

Catalog: Common Mode Chokes

DataSheet: B82725S2103N003 PDF

Availability: 437 pieces

Unit Price: ~~$10.87000~~

Current price of B82725S2103N003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82725S2103N003 Specifications

Type	Description
Series:	B82725
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.8 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	10A
DC Resistance (DCR) (Max):	12.5mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.591" L x 0.846" W (40.40mm x 21.50mm)
Height (Max):	1.457" (37.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
