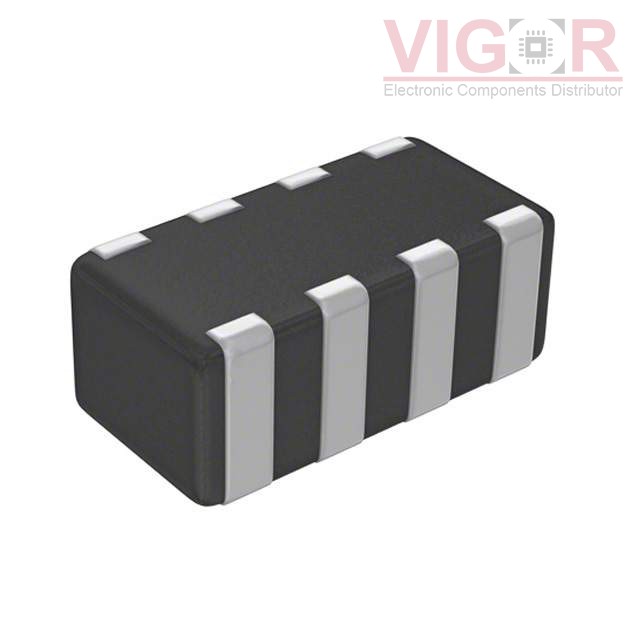

MCZ2010CH240L4T000

Image is for reference,
please contact us to get the real picture

Part No :: MCZ2010CH240L4T000

Manufacturer: TDK Corporation

Description: CMC 100MA 4LN 24 OHM SMD

Catalog: Common Mode Chokes

DataSheet: MCZ2010CH240L4T000 PDF

Availability: 5998 pieces

Unit Price: ~~$0.74000~~

Current price of MCZ2010CH240L4T000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCZ2010CH240L4T000 Specifications

Type	Description
Series:	MCZ-CH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	24 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	1Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.079" L x 0.039" W (2.00mm x 1.00mm)
Height (Max):	0.024" (0.60mm)
Package / Case:	0804 (2010 Metric), 8 Lead
