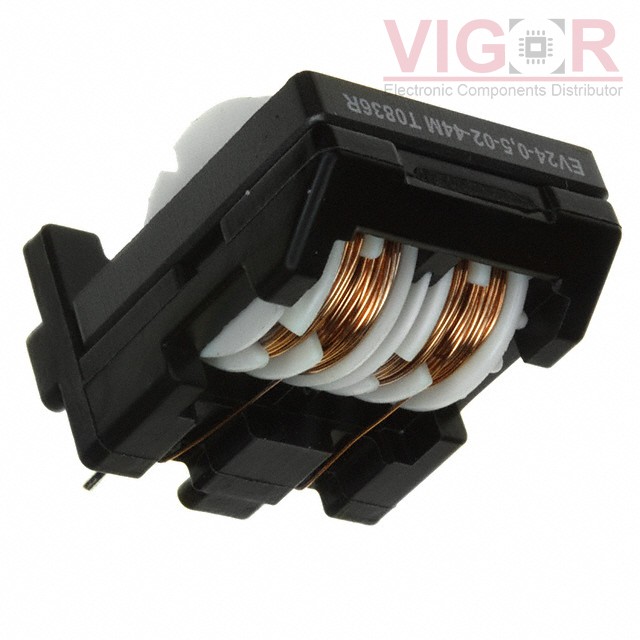

EV24-0.5-02-44M

Image is for reference,
please contact us to get the real picture

Part No :: EV24-0.5-02-44M

Manufacturer: Schaffner EMC, Inc.

Description: CMC 44MH 500MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: EV24-0.5-02-44M PDF

Availability: 395 pieces

Unit Price: ~~$2.63000~~

Current price of EV24-0.5-02-44M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EV24-0.5-02-44M Specifications

Type	Description
Series:	EV
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	44 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	1.25Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max):	1.185" (30.10mm)
Package / Case:	Vertical, 4 PC Pin
