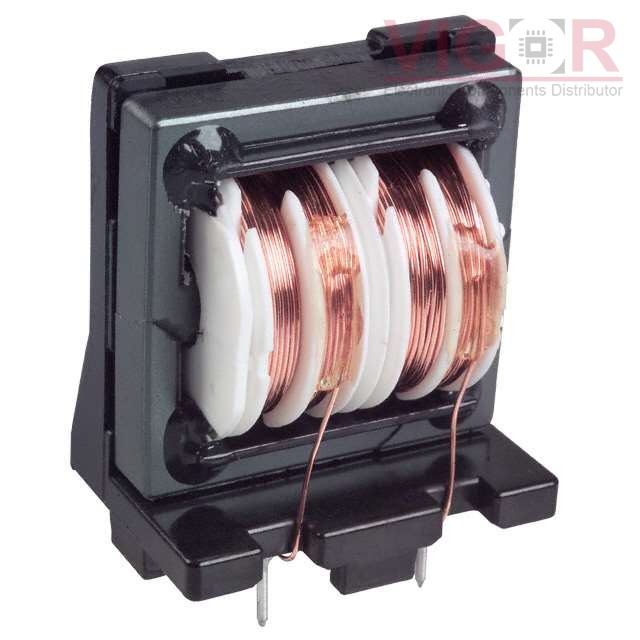

ELF-21V016A

Part No :: ELF-21V016A

Manufacturer: Panasonic

VIGOR # :: 4966360

Description: COMMON MODE CHOKE 1.6A 2LN TH

Catalog: Common Mode Chokes

DataSheet: ELF-21V016A PDF

Country of origin: -

Date code: -

ELF-21V016A Specifications

Type	Description
Series:	V
Package:	Bulk
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.6A
DC Resistance (DCR) (Max):	226mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max):	1.398" (35.50mm)
Package / Case:	Vertical, 4 PC Pin
