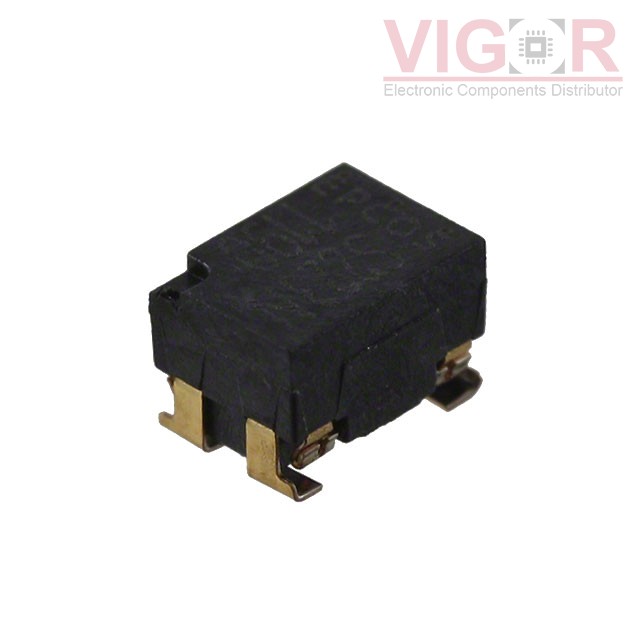

B82799C104N1

Part No :: B82799C104N1

Manufacturer: TDK EPCOS

VIGOR # :: 4966396

Description: CMC 100UH 300MA 2LN SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: B82799C104N1 PDF

Country of origin: -

Date code: -

B82799C104N1 Specifications

Type	Description
Series:	B82799
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	100 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	150mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-55°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.126" (3.20mm)
Package / Case:	Horizontal, 4 L-Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 06 - Oct 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of B82799C104N1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

PE-0805CCMC670STS

CMC 400MA 2LN 67 OHM SMD

PLY10AN7012R0D2B

COMMON MODE CHOKE 2A 2LN TH

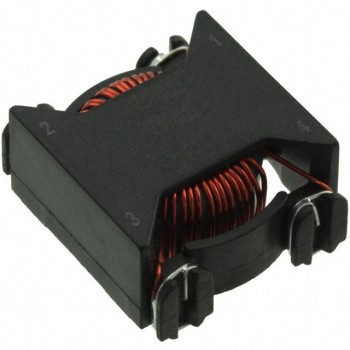

PE-53913
