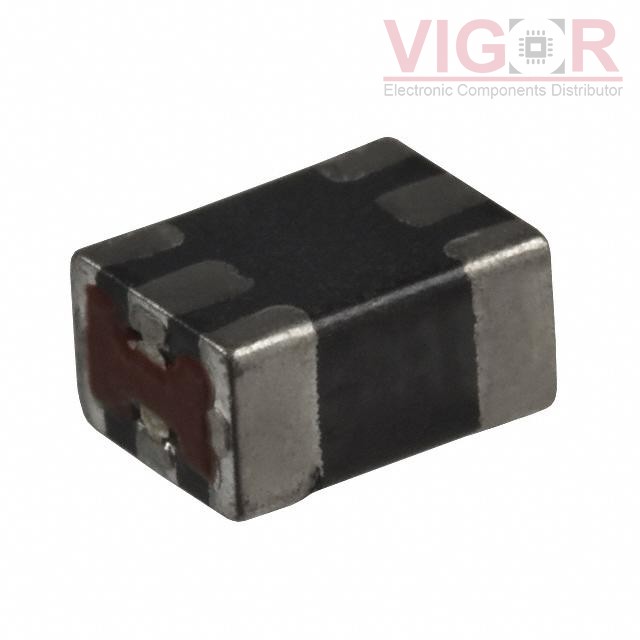

ACM4532-102-3P-T

Part No :: ACM4532-102-3P-T

Manufacturer: TDK Corporation

VIGOR # :: 4966424

Description: CMC 200MA 3LN 1 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM4532-102-3P-T PDF

Country of origin: -

Date code: -

ACM4532-102-3P-T Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	3
Impedance @ Frequency:	1 kOhms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	200mA
DC Resistance (DCR) (Max):	600mOhm
Voltage Rating - DC:	20V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.091" (2.30mm)
Package / Case:	1812 (4532 Metric), 6 Lead
