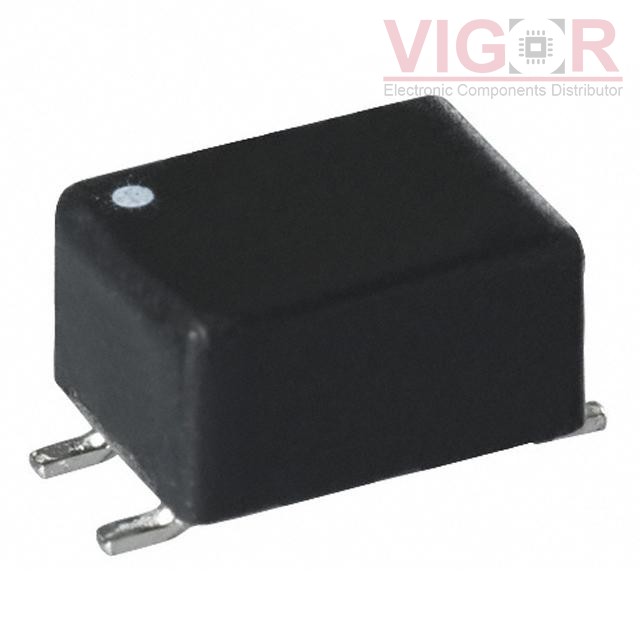

CC2824E113R-00

Part No :: CC2824E113R-00

Manufacturer: Laird - Performance Materials

VIGOR # :: 4966439

Description: CMC 11UH 800MA 2LN 800 OHM SMD

Catalog: Common Mode Chokes

DataSheet: CC2824E113R-00 PDF

Country of origin: -

Date code: -

CC2824E113R-00 Specifications

Type	Description
Series:	CC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	800 Ohms @ 200 MHz
Inductance @ Frequency:	11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	156mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.295" L x 0.217" W (7.50mm x 5.50mm)
Height (Max):	0.150" (3.80mm)
Package / Case:	Horizontal, 4 Flat Lead
