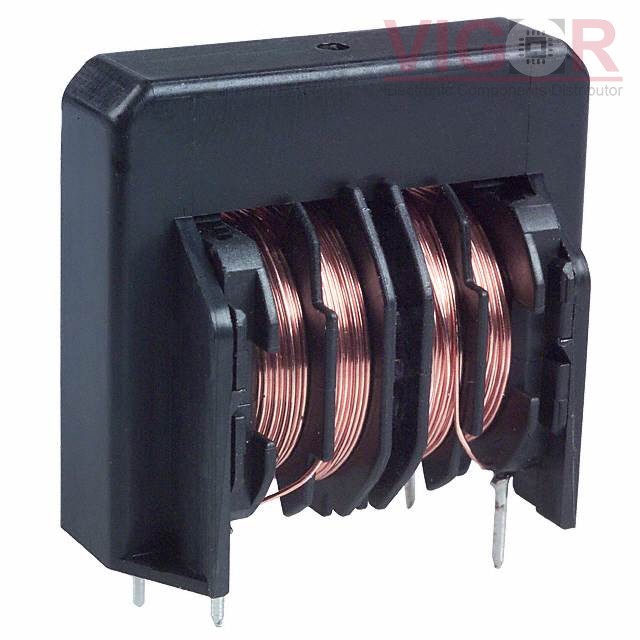

ELF-20N010A

Part No :: ELF-20N010A

Manufacturer: Panasonic

VIGOR # :: 4966465

Description: COMMON MODE CHOKE 1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: ELF-20N010A PDF

Country of origin: -

Date code: -

ELF-20N010A Specifications

Type	Description
Series:	N
Package:	Bulk
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	500mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.787" L x 1.260" W (20.00mm x 32.00mm)
Height (Max):	1.181" (30.00mm)
Package / Case:	Vertical, 4 PC Pin
