UF1815SG-151Y2R2-01

Part No :: UF1815SG-151Y2R2-01

Manufacturer: TDK Corporation

VIGOR # :: 4966647

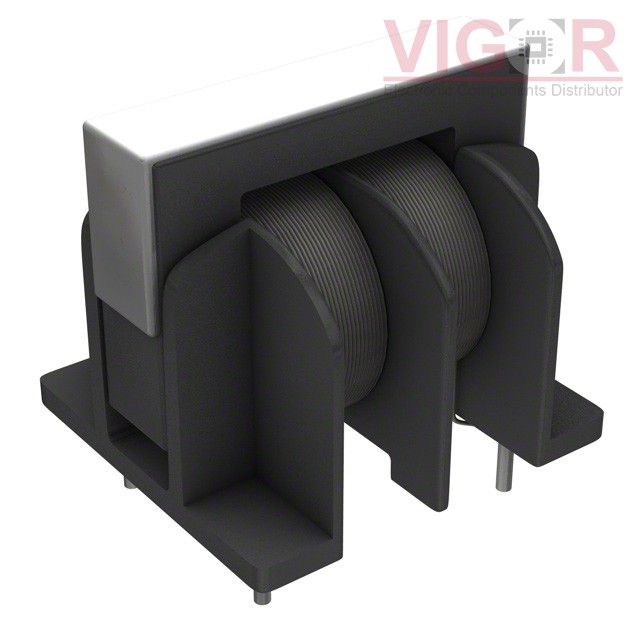

Description: COMMON MODE CHOKE 2.2A 2LN TH

Catalog: Common Mode Chokes

DataSheet: UF1815SG-151Y2R2-01 PDF

Country of origin: -

Date code: -

UF1815SG-151Y2R2-01 Specifications

Type	Description
Series:	UF
Package:	Bulk
Part Status:	Obsolete
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.2A
DC Resistance (DCR) (Max):	100mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-20°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.709" L x 0.669" W (18.00mm x 17.00mm)
Height (Max):	0.610" (15.50mm)
Package / Case:	Vertical, 4 PC Pin
