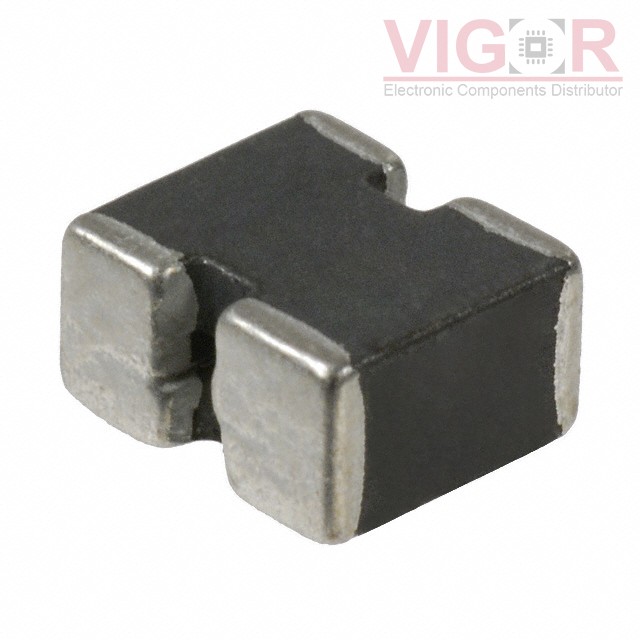

CM1922X330R-00

Part No :: CM1922X330R-00

Manufacturer: Laird - Performance Materials

VIGOR # :: 4966788

Description: CMC 10A 2LN 33 OHM SMD

Catalog: Common Mode Chokes

DataSheet: CM1922X330R-00 PDF

Country of origin: -

Date code: -

CM1922X330R-00 Specifications

Type	Description
Series:	CM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	33 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	10A
DC Resistance (DCR) (Max):	3mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.220" L x 0.185" W (5.60mm x 4.70mm)
Height (Max):	0.112" (2.85mm)
Package / Case:	Horizontal, 4 PC Pad
