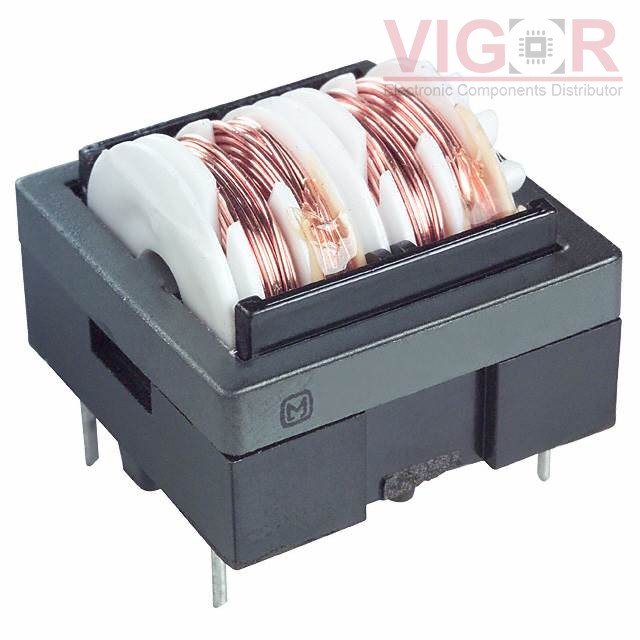

ELF-18D420F

Part No :: ELF-18D420F

Manufacturer: Panasonic

VIGOR # :: 4966814

Description: CMC 1.2MH 3A 2LN TH

Catalog: Common Mode Chokes

DataSheet: ELF-18D420F PDF

Country of origin: -

Date code: -

ELF-18D420F Specifications

Type	Description
Series:	H
Package:	Bulk
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.2 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	3A
DC Resistance (DCR) (Max):	43mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.945" L x 0.984" W (24.00mm x 25.00mm)
Height (Max):	0.807" (20.50mm)
Package / Case:	Vertical, 4 PC Pin
