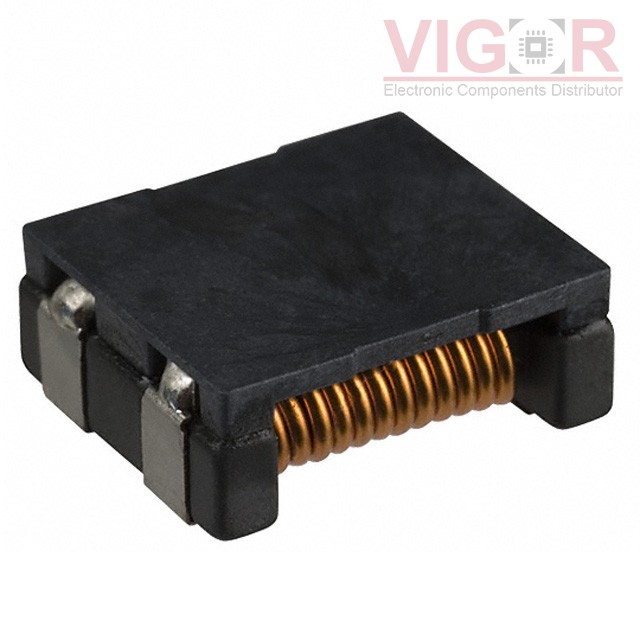

ACM1513-551-2PL-TL

Part No :: ACM1513-551-2PL-TL

Manufacturer: TDK Corporation

VIGOR # :: 4967031

Description: CMC 10A 2LN 550 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM1513-551-2PL-TL PDF

Country of origin: -

Date code: -

ACM1513-551-2PL-TL Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	550 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	10A
DC Resistance (DCR) (Max):	4mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max):	0.236" (6.00mm)
Package / Case:	Horizontal, 4 PC Pad
