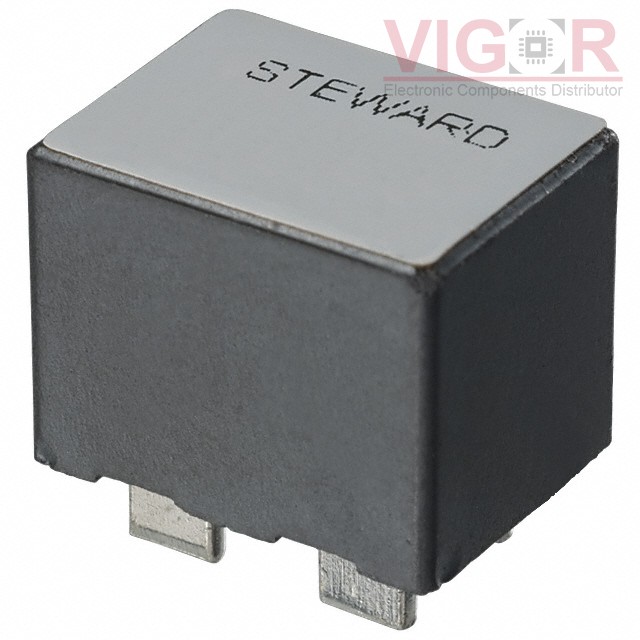

CM5441Z101B-00

Part No :: CM5441Z101B-00

Manufacturer: Laird - Performance Materials

VIGOR # :: 4967190

Description: CMC 75A 2LN 100 OHM TH

Catalog: Common Mode Chokes

DataSheet: CM5441Z101B-00 PDF

Country of origin: -

Date code: -

CM5441Z101B-00 Specifications

Type	Description
Series:	CM
Package:	Bulk
Part Status:	Obsolete
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	100 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	75A
DC Resistance (DCR) (Max):	0.3mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.540" L x 0.410" W (13.72mm x 10.41mm)
Height (Max):	0.414" (10.52mm)
Package / Case:	Vertical, 4 PC Pin
