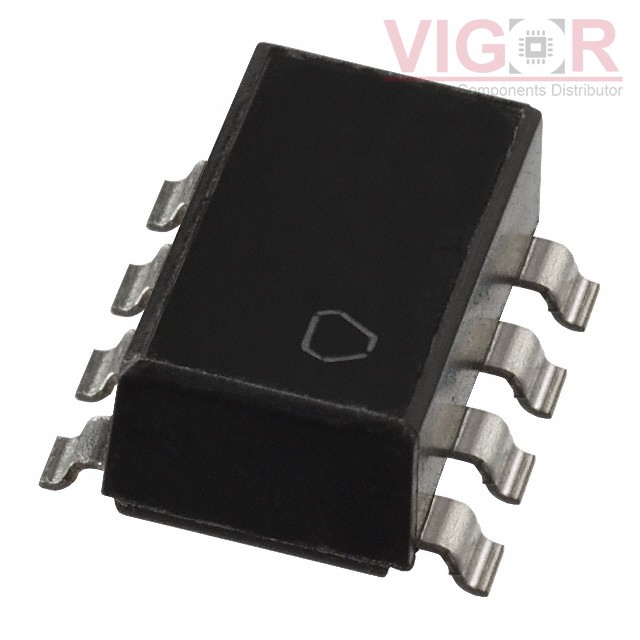

ZJYS5105-2PLT-01

Part No :: ZJYS5105-2PLT-01

Manufacturer: TDK Corporation

VIGOR # :: 4967196

Description: CMC 5A 2LN 100 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ZJYS5105-2PLT-01 PDF

Country of origin: -

Date code: -

ZJYS5105-2PLT-01 Specifications

Type	Description
Series:	ZJYS51
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	100 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.413" L x 0.354" W (10.50mm x 9.00mm)
Height (Max):	0.200" (5.08mm)
Package / Case:	Horizontal, 4 Gull Wing
