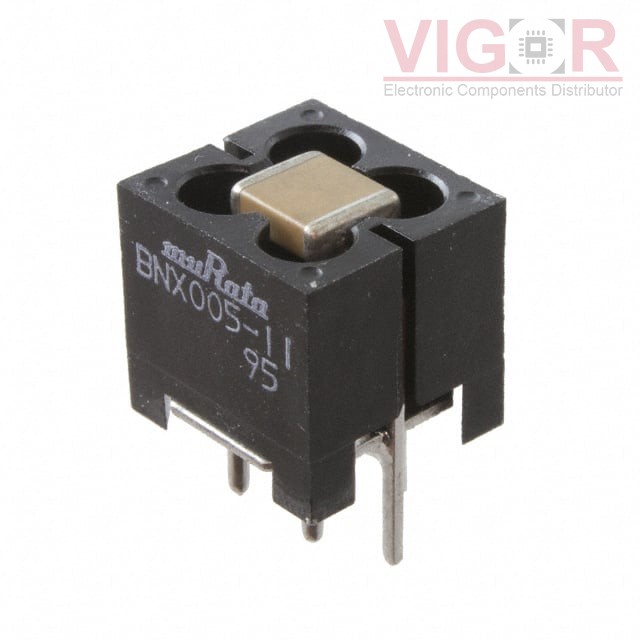

BNX005-11

BNX005-11

Image is for reference,
please contact us to get the real picture

Part No :

BNX005-11

Manufacturer
TOKO / Murata
Description
FILTER EMI SUPPRESSION BLOCK
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 16 - Oct 20 2025
DataSheet
BNX005-11 PDF
Availability
50 pieces
Unit Price
$11.77000

Current price of BNX005-11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BNX005-11 Specifications
Type Description
Series:EMIFIL®, BNX
Package:Box
Part Status:Active
Type:Low Pass
Filter Order:5th
Technology:LC
Number of Channels:2
Center / Cutoff Frequency:-
Attenuation Value:40dB @ 1MHz ~ 1GHz
Resistance - Channel (Ohms):-
Current:15 A
Values:-
ESD Protection:No
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:50V
Mounting Type:Through Hole
Package / Case:Block, 4 Lead
Size / Dimension:0.472" L x 0.433" W (12.00mm x 11.00mm)
Height:0.512" (13.00mm)
