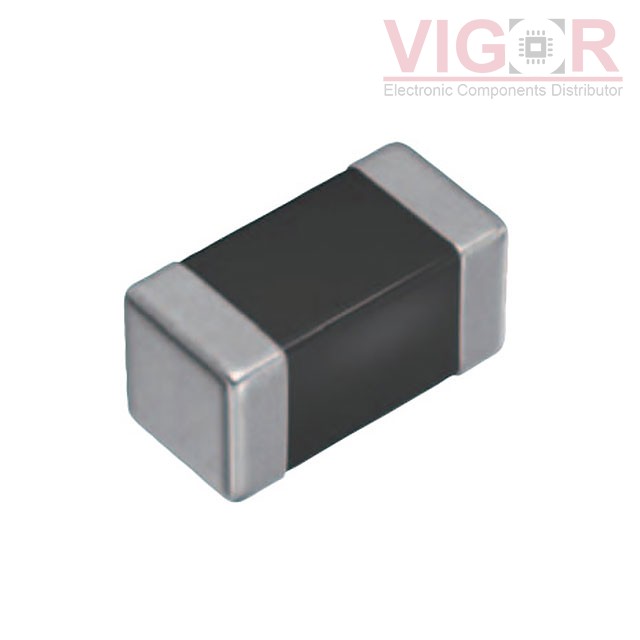

KPZ1608SHR102ATD25

Part No :: KPZ1608SHR102ATD25

Manufacturer: TDK Corporation

VIGOR # :: 4043896

Description: FERRITE BEAD 1 KOHM 0603 1LN

Catalog: Ferrite Beads and Chips

DataSheet: KPZ1608SHR102ATD25 PDF

Country of origin: -

Date code: -

KPZ1608SHR102ATD25 Specifications

Type	Description
Series:	KPZ-HR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	1
Impedance @ Frequency:	1 kOhms @ 100 MHz
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	300mOhm
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Package / Case:	0603 (1608 Metric)
Mounting Type:	Surface Mount
Height (Max):	0.037" (0.95mm)
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.80mm)
Features:	Soft Termination

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 31619

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.20~~	~~$0.20~~
4000	~~$0.04~~	~~$180.00~~
8000	~~$0.04~~	~~$340.00~~
12000	~~$0.04~~	~~$480.00~~
28000	~~$0.04~~	~~$1 085.00~~
100000	~~$0.04~~	~~$3 625.00~~

Current price of KPZ1608SHR102ATD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
