CTX20-3-R

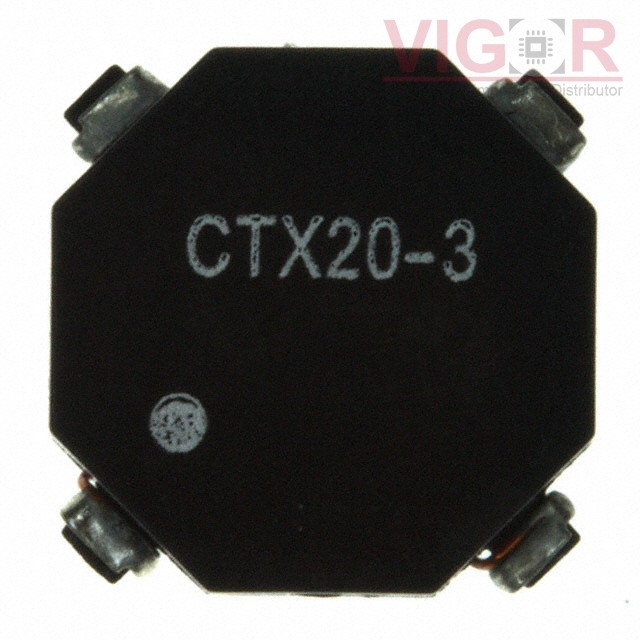

Image is for reference,
please contact us to get the real picture

Part No :: CTX20-3-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 20.18UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: CTX20-3-R PDF

Availability: 0 pieces

Unit Price: ~~$3.01500~~

Current price of CTX20-3-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTX20-3-R Specifications

Type	Description
Series:	OCTA-PAC®
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	20.18 µH
Inductance - Connected In Series:	80.74 µH
Tolerance:	±20%
Current Rating - Parallel:	1.5 A
Current Rating - Series:	750 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	78mOhm Max
DC Resistance (DCR) - Series:	312mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height:	0.190" (4.83mm)
