CTX150-4-R

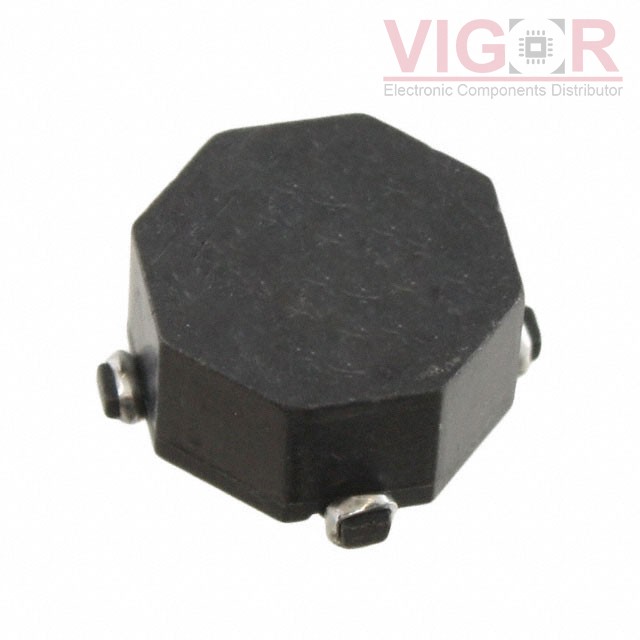

Image is for reference,
please contact us to get the real picture

Part No :: CTX150-4-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 148.23UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: CTX150-4-R PDF

Availability: 734 pieces

Unit Price: ~~$5.17000~~

Current price of CTX150-4-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTX150-4-R Specifications

Type	Description
Series:	OCTA-PAC®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	148.23 µH
Inductance - Connected In Series:	592.9 µH
Tolerance:	±20%
Current Rating - Parallel:	820 mA
Current Rating - Series:	410 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	372mOhm Max
DC Resistance (DCR) - Series:	1.488Ohm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height:	0.250" (6.35mm)

Please confirm the specifications of the products when ordering.
