744878220

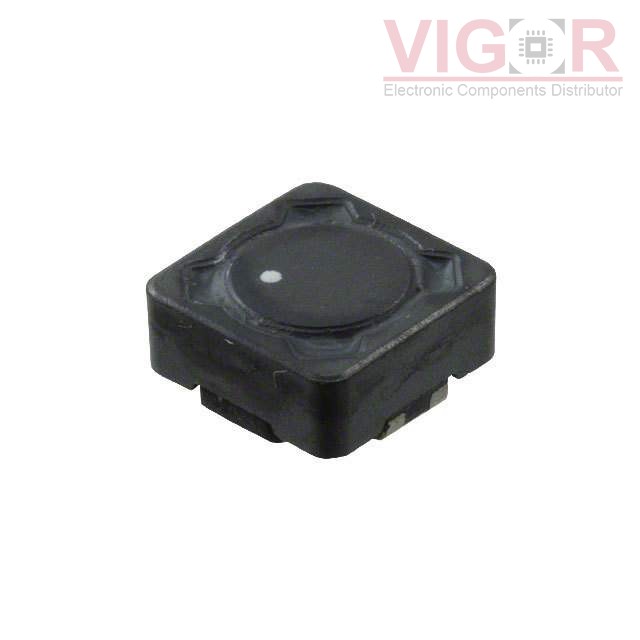

Image is for reference,
please contact us to get the real picture

Part No :: 744878220

Manufacturer: Würth Elektronik Midcom

Description: INDUCT ARRAY 2 COIL 22UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: 744878220 PDF

Availability: 1778 pieces

Unit Price: ~~$2.38000~~

Current price of 744878220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744878220 Specifications

Type	Description
Series:	WE-DD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	22 µH
Inductance - Connected In Series:	88 µH
Tolerance:	±20%
Current Rating - Parallel:	700 mA
Current Rating - Series:	350 mA
Current Saturation - Parallel:	1.5 A
Current Saturation - Series:	750 mA
DC Resistance (DCR) - Parallel:	300mOhm Max
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height:	0.157" (4.00mm)

Please confirm the specifications of the products when ordering.
