744870004

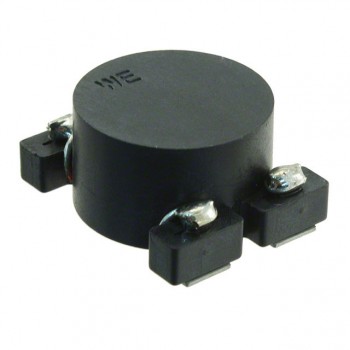

Image is for reference,
please contact us to get the real picture

Part No :: 744870004

Manufacturer: Würth Elektronik Midcom

Description: INDUCT ARRAY 2 COIL 4.7UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: 744870004 PDF

Availability: 445 pieces

Unit Price: ~~$2.81000~~

Current price of 744870004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744870004 Specifications

Type	Description
Series:	WE-DD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	4.7 µH
Inductance - Connected In Series:	18.8 µH
Tolerance:	±20%
Current Rating - Parallel:	3.6 A
Current Rating - Series:	1.8 A
Current Saturation - Parallel:	8 A
Current Saturation - Series:	4 A
DC Resistance (DCR) - Parallel:	30mOhm Max
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.335" (8.50mm)
