SDQ12-6R2-R

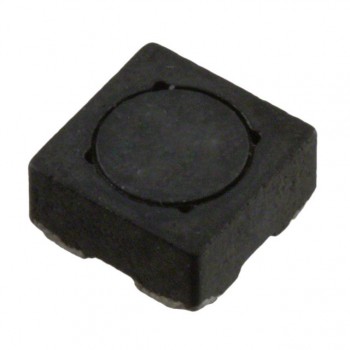

Image is for reference,
please contact us to get the real picture

Part No :: SDQ12-6R2-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 6.25UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SDQ12-6R2-R PDF

Availability: 2889 pieces

Unit Price: ~~$2.78000~~

Current price of SDQ12-6R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDQ12-6R2-R Specifications

Type	Description
Series:	SDQ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	6.25 µH
Inductance - Connected In Series:	25 µH
Tolerance:	±20%
Current Rating - Parallel:	1.02 A
Current Rating - Series:	512 mA
Current Saturation - Parallel:	1.22 A
Current Saturation - Series:	608 mA
DC Resistance (DCR) - Parallel:	238.7mOhm
DC Resistance (DCR) - Series:	954.8mOhm
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:	0.047" (1.19mm)
