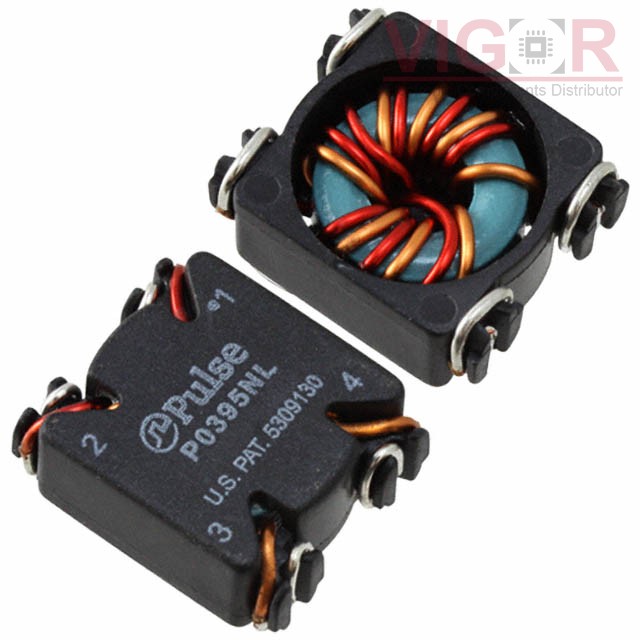

P0396NLT

Part No :: P0396NLT

Manufacturer: PulseLarsen Antenna

Description: INDUCT ARRAY 2 COIL 3.5UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: P0396NLT PDF

Availability: 0 pieces

Unit Price: ~~$1.34850~~

Current price of P0396NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

P0396NLT Specifications

Type	Description
Series:	Tomcat
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	3.5 µH
Inductance - Connected In Series:	14 µH
Tolerance:	±20%
Current Rating - Parallel:	11.2 A
Current Rating - Series:	5.6 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	6.54mOhm
DC Resistance (DCR) - Series:	26.2mOhm
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.715" L x 0.590" W (18.16mm x 14.99mm)
Height:	0.310" (7.87mm)

Please confirm the specifications of the products when ordering.
