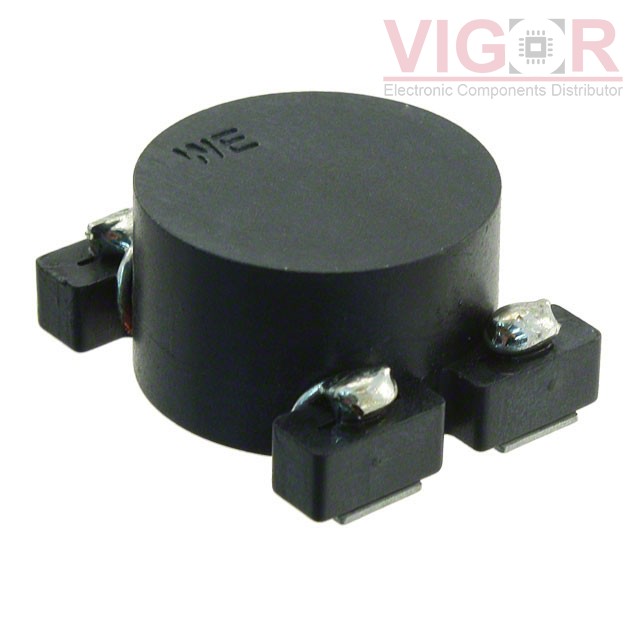

744851101

Part No :: 744851101

Manufacturer: Würth Elektronik Midcom

Description: INDUCT ARRAY 2 COIL 10UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: 744851101 PDF

Availability: 138 pieces

Unit Price: ~~$5.43000~~

Current price of 744851101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744851101 Specifications

Type	Description
Series:	WE-DCT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	10 µH
Inductance - Connected In Series:	40 µH
Tolerance:	±10%
Current Rating - Parallel:	5.3 A
Current Rating - Series:	2.65 A
Current Saturation - Parallel:	8 A
Current Saturation - Series:	4 A
DC Resistance (DCR) - Parallel:	22mOhm Max
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.906" L x 0.728" W (23.00mm x 18.50mm)
Height:	0.453" (11.50mm)

Please confirm the specifications of the products when ordering.
