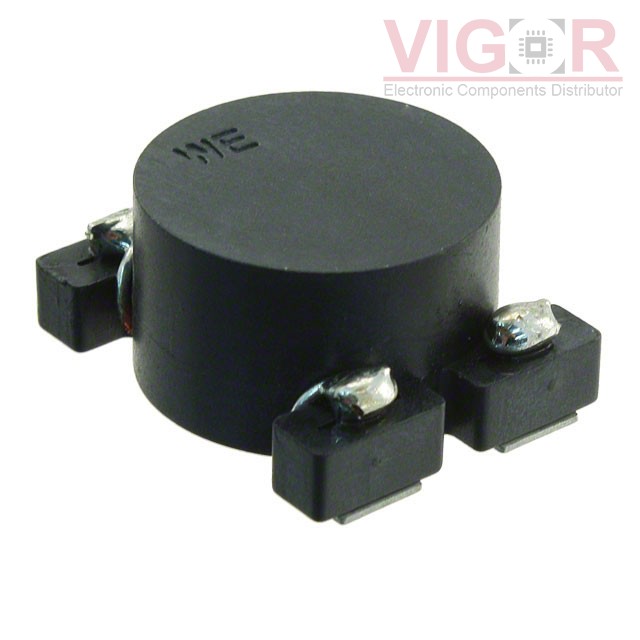

744851220

Part No :: 744851220

Manufacturer: Würth Elektronik Midcom

Description: INDUCT ARRAY 2 COIL 2.2UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: 744851220 PDF

Availability: 0 pieces

Unit Price: ~~$4.68200~~

Current price of 744851220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744851220 Specifications

Type	Description
Series:	WE-DCT
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	2.2 µH
Inductance - Connected In Series:	8.8 µH
Tolerance:	±20%
Current Rating - Parallel:	8.6 A
Current Rating - Series:	4.3 A
Current Saturation - Parallel:	17 A
Current Saturation - Series:	8.5 A
DC Resistance (DCR) - Parallel:	8.5mOhm Max
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.906" L x 0.728" W (23.00mm x 18.50mm)
Height:	0.453" (11.50mm)
