CTX8-3P-R

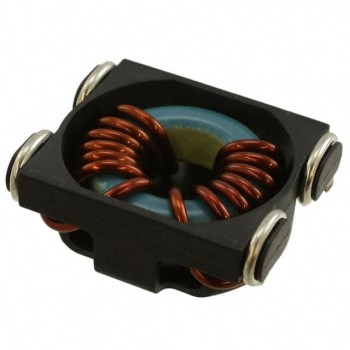

Image is for reference,
please contact us to get the real picture

Part No :: CTX8-3P-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 8.16UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: CTX8-3P-R PDF

Availability: 0 pieces

Unit Price: ~~$2.07700~~

Current price of CTX8-3P-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTX8-3P-R Specifications

Type	Description
Series:	Econo-Pac™
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	8.16 µH
Inductance - Connected In Series:	32.63 µH
Tolerance:	±20%
Current Rating - Parallel:	2.8 A
Current Rating - Series:	1.4 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	30mOhm Max
DC Resistance (DCR) - Series:	119mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height:	0.190" (4.83mm)
