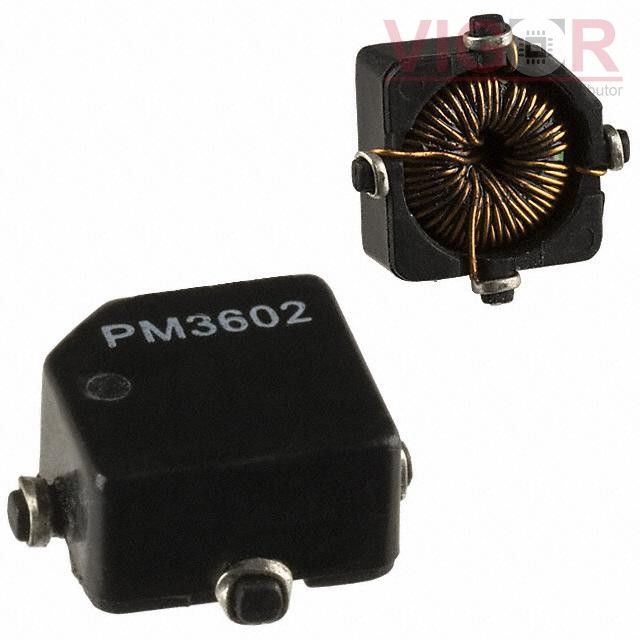

PM3602-20-RC

Part No :: PM3602-20-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1646762

Description: INDUCT ARRAY 2 COIL 20UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: PM3602-20-RC PDF

Country of origin: -

Date code: -

PM3602-20-RC Specifications

Type	Description
Series:	PM3600
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	20 µH
Inductance - Connected In Series:	80 µH
Tolerance:	±20%
Current Rating - Parallel:	1.25 A
Current Rating - Series:	630 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	86mOhm Max
DC Resistance (DCR) - Series:	340mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.452" L x 0.354" W (11.48mm x 8.99mm)
Height:	0.225" (5.72mm)
