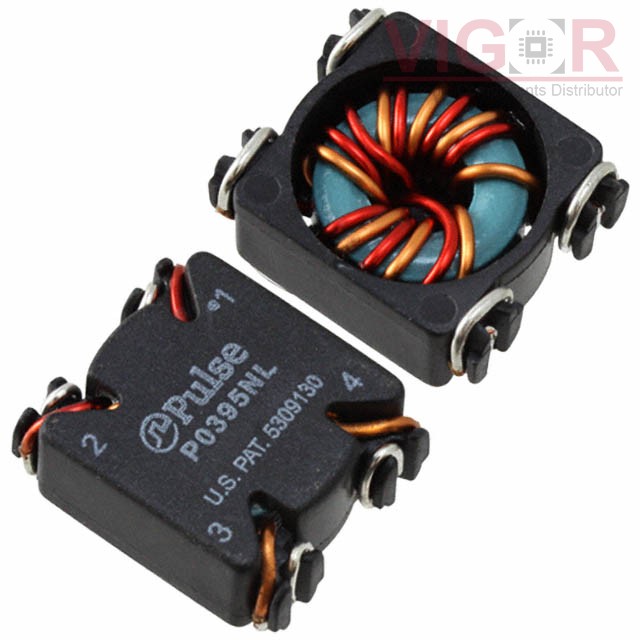

P0395NLT

Part No :: P0395NLT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 1646847

Description: INDUCT ARRAY 2 COIL 2.2UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: P0395NLT PDF

Country of origin: -

Date code: -

P0395NLT Specifications

Type	Description
Series:	Tomcat
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	2.2 µH
Inductance - Connected In Series:	9 µH
Tolerance:	±20%
Current Rating - Parallel:	14.4 A
Current Rating - Series:	7.2 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	4.41mOhm
DC Resistance (DCR) - Series:	17.6mOhm
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.715" L x 0.590" W (18.16mm x 14.99mm)
Height:	0.310" (7.87mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 09 - Feb 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.35~~	~~$1.35~~
1500	~~USD 1,27~~	~~$1 906.50~~

Current price of P0395NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
