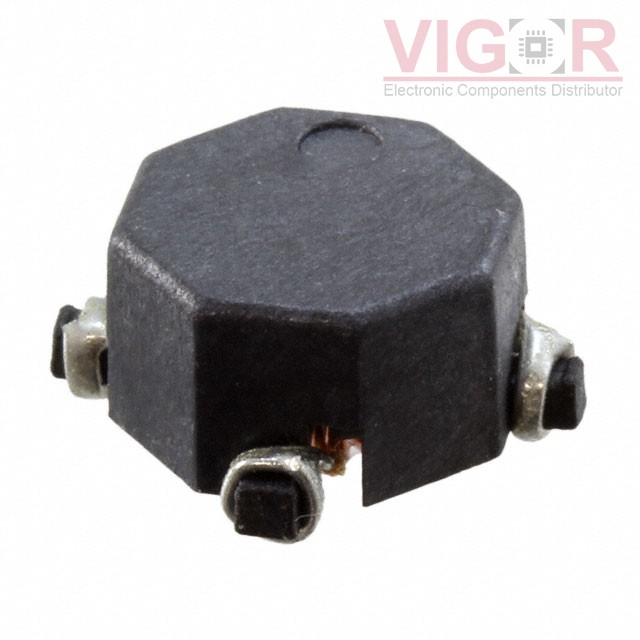

SCX114-4R7

Part No :: SCX114-4R7

Manufacturer: Signal Transformer

VIGOR # :: 4448365

Description: INDUCT ARRAY 2 COIL 4.7UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SCX114-4R7 PDF

Country of origin: -

Date code: -

SCX114-4R7 Specifications

Type	Description
Series:	SCX114
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	4.7 µH
Inductance - Connected In Series:	18.8 µH
Tolerance:	±20%
Current Rating - Parallel:	2 A
Current Rating - Series:	1 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	41mOhm Max
DC Resistance (DCR) - Series:	161mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.461" L x 0.461" W (11.70mm x 11.70mm)
Height:	0.217" (5.50mm)
