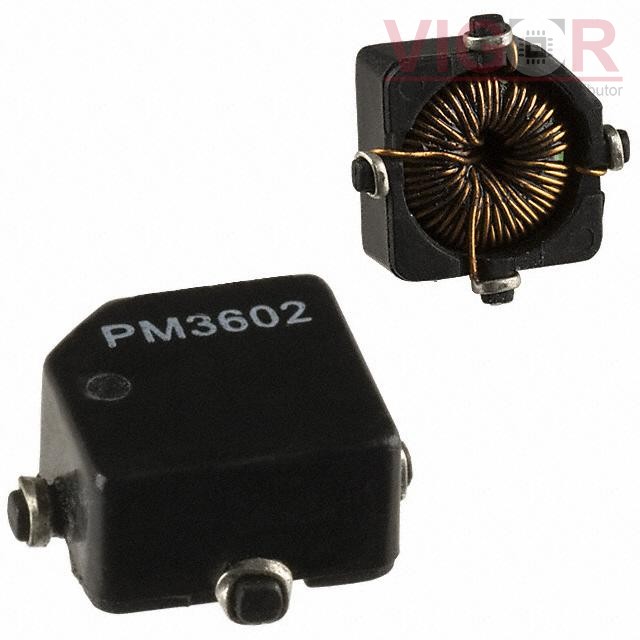

PM3602-25

Part No :: PM3602-25

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4448391

Description: INDUCT ARRAY 2 COIL 25UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: PM3602-25 PDF

Country of origin: -

Date code: -

PM3602-25 Specifications

Type	Description
Series:	PM3600
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	25 µH
Inductance - Connected In Series:	100 µH
Tolerance:	±20%
Current Rating - Parallel:	1.17 A
Current Rating - Series:	590 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	98mOhm Max
DC Resistance (DCR) - Series:	390mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.452" L x 0.354" W (11.48mm x 8.99mm)
Height:	0.225" (5.72mm)
