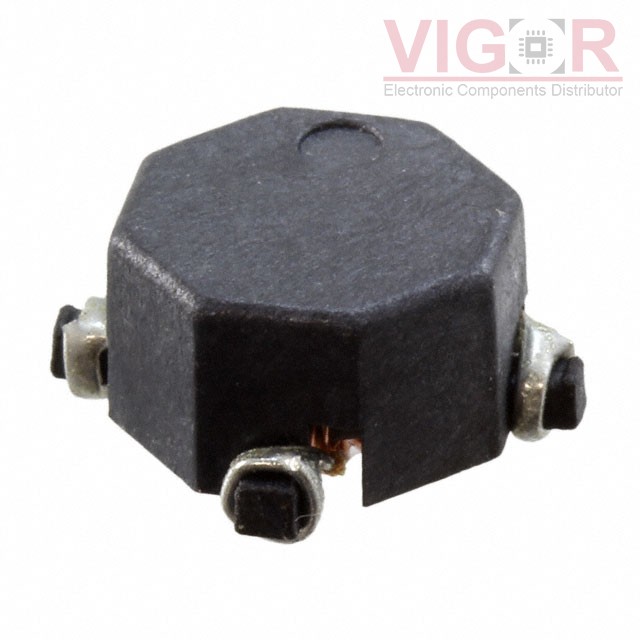

SCX114-2R2

Part No :: SCX114-2R2

Manufacturer: Signal Transformer

VIGOR # :: 4448397

Description: INDUCT ARRAY 2 COIL 2.2UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SCX114-2R2 PDF

Country of origin: -

Date code: -

SCX114-2R2 Specifications

Type	Description
Series:	SCX114
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	2.2 µH
Inductance - Connected In Series:	8.08 µH
Tolerance:	±20%
Current Rating - Parallel:	3.4 A
Current Rating - Series:	1.7 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	18mOhm Max
DC Resistance (DCR) - Series:	70mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.461" L x 0.461" W (11.70mm x 11.70mm)
Height:	0.217" (5.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 08 - Feb 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of SCX114-2R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

PF0553.474NLT

INDUCT ARRAY 2 COIL 470UH SMD

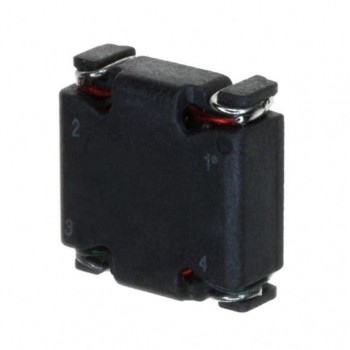

P0179NLT
