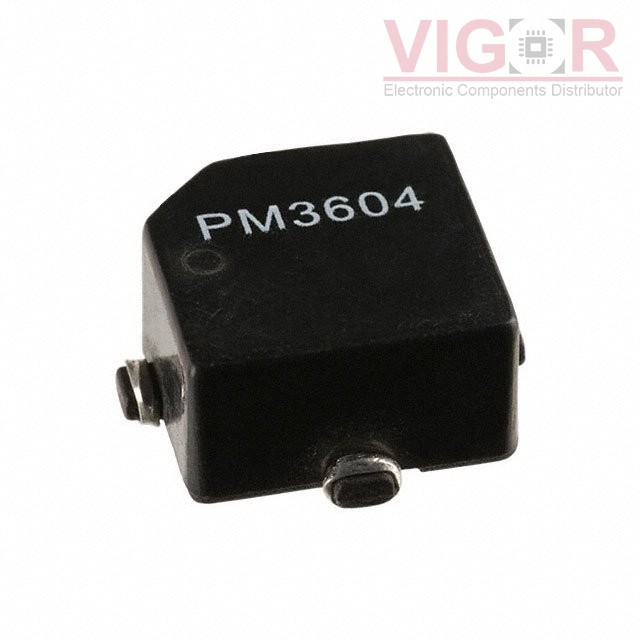

PM3604-5-B-RC

Part No :: PM3604-5-B-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4448430

Description: INDUCT ARRAY 2 COIL 5UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: PM3604-5-B-RC PDF

Country of origin: -

Date code: -

PM3604-5-B-RC Specifications

Type	Description
Series:	PM3600
Package:	Bulk
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	5 µH
Inductance - Connected In Series:	20 µH
Tolerance:	±20%
Current Rating - Parallel:	3.3 A
Current Rating - Series:	1.65 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	19mOhm Max
DC Resistance (DCR) - Series:	76mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.550" L x 0.452" W (13.97mm x 11.48mm)
Height:	0.265" (6.73mm)
