SCX114-500

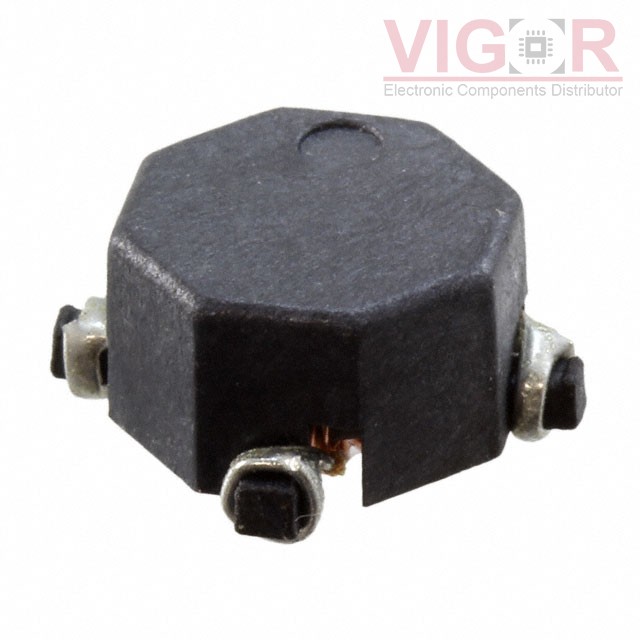

Image is for reference,
please contact us to get the real picture

Part No :: SCX114-500

Manufacturer: Signal Transformer

Description: INDUCT ARRAY 2 COIL 50UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SCX114-500 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCX114-500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCX114-500 Specifications

Type	Description
Series:	SCX114
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	50 µH
Inductance - Connected In Series:	202.07 µH
Tolerance:	±20%
Current Rating - Parallel:	700 mA
Current Rating - Series:	350 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	316mOhm Max
DC Resistance (DCR) - Series:	1.263Ohm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.461" L x 0.461" W (11.70mm x 11.70mm)
Height:	0.217" (5.50mm)
