SCX147-201

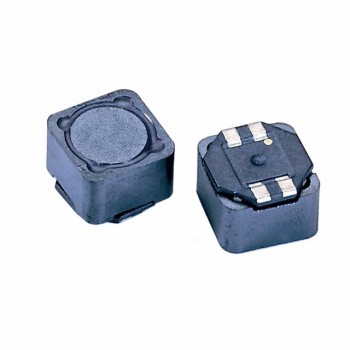

Image is for reference,
please contact us to get the real picture

Part No :: SCX147-201

Manufacturer: Signal Transformer

Description: INDUCT ARRAY 2 COIL 200UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SCX147-201 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCX147-201 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCX147-201 Specifications

Type	Description
Series:	SCX147
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	200 µH
Inductance - Connected In Series:	802.82 µH
Tolerance:	±20%
Current Rating - Parallel:	640 mA
Current Rating - Series:	320 mA
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	545mOhm Max
DC Resistance (DCR) - Series:	2.18Ohm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.567" L x 0.567" W (14.40mm x 14.40mm)
Height:	0.276" (7.00mm)
