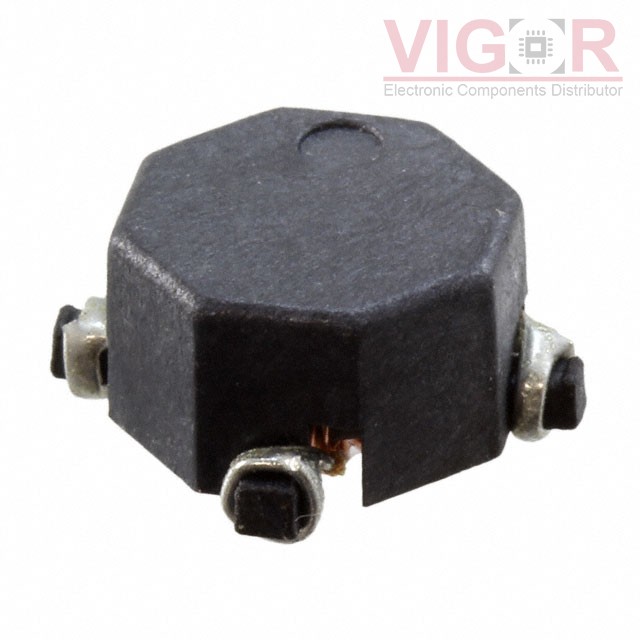

SCX114-1R2

Image is for reference,
please contact us to get the real picture

Part No :: SCX114-1R2

Manufacturer: Signal Transformer

Description: INDUCT ARRAY 2 COIL 1.2UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: SCX114-1R2 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCX114-1R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCX114-1R2 Specifications

Type	Description
Series:	SCX114
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Number of Coils:	2
Inductance - Connected In Parallel:	1.2 µH
Inductance - Connected In Series:	4.28 µH
Tolerance:	±20%
Current Rating - Parallel:	4.5 A
Current Rating - Series:	2.55 A
Current Saturation - Parallel:	-
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	14mOhm Max
DC Resistance (DCR) - Series:	56mOhm Max
Shielding:	Unshielded
Ratings:	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.461" L x 0.461" W (11.70mm x 11.70mm)
Height:	0.217" (5.50mm)

Please confirm the specifications of the products when ordering.
