B82464G4223M000

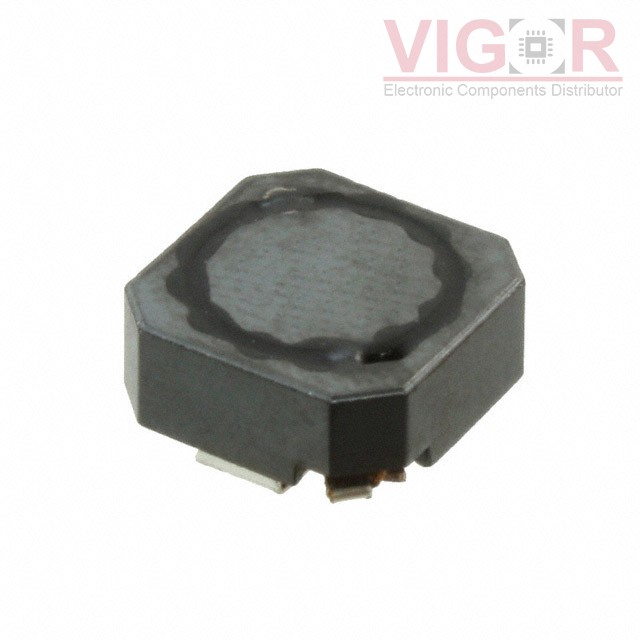

Image is for reference,
please contact us to get the real picture

Part No :: B82464G4223M000

Manufacturer: TDK EPCOS

Description: FIXED IND 22UH 2.25A 52 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B82464G4223M000 PDF

Availability: 219 pieces

Unit Price: ~~$2.06000~~

Current price of B82464G4223M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82464G4223M000 Specifications

Type	Description
Series:	B82464G4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.25 A
Current - Saturation (Isat):	2.5A
Shielding:	Shielded
DC Resistance (DCR):	52mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max):	0.189" (4.80mm)
