SDED20161T-150MS

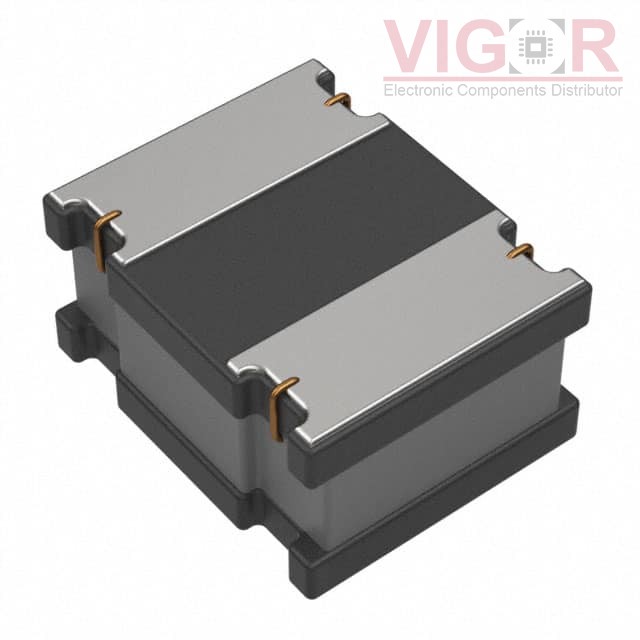

Image is for reference,
please contact us to get the real picture

Part No :: SDED20161T-150MS

Manufacturer: Delta Electronics

Description: FIXED IND 15UH 420MA 1.895OHM SM

Catalog: Fixed Inductors

DataSheet: SDED20161T-150MS PDF

Availability: 3790 pieces

Unit Price: ~~$0.23000~~

Current price of SDED20161T-150MS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDED20161T-150MS Specifications

Type	Description
Series:	SDED20161T
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	-
Inductance:	15 µH
Tolerance:	±20%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	450mA
Shielding:	Shielded
DC Resistance (DCR):	1.895Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
