B82476B1102M100

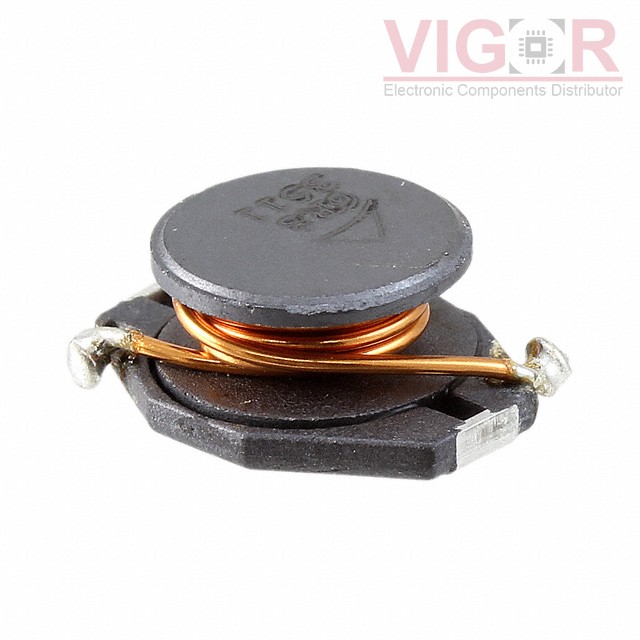

Image is for reference,
please contact us to get the real picture

Part No :: B82476B1102M100

Manufacturer: TDK EPCOS

Description: FIXED IND 1UH 7.5A 8 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B82476B1102M100 PDF

Availability: 738 pieces

Unit Price: ~~$1.88000~~

Current price of B82476B1102M100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82476B1102M100 Specifications

Type	Description
Series:	B82476B1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	7.5 A
Current - Saturation (Isat):	9A
Shielding:	Unshielded
DC Resistance (DCR):	8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Max):	0.200" (5.08mm)
