B82498F3681J000

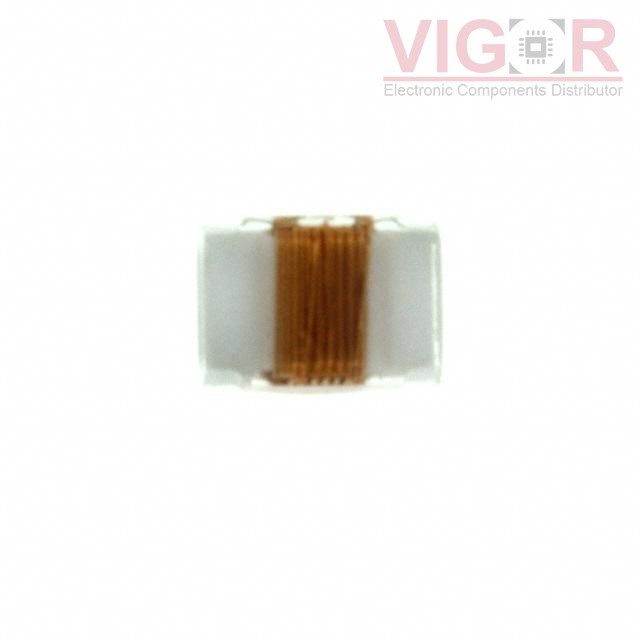

Image is for reference,
please contact us to get the real picture

Part No :: B82498F3681J000

Manufacturer: TDK EPCOS

Description: FIXED IND 680NH 190MA 1.7 OHM

Catalog: Fixed Inductors

DataSheet: B82498F3681J000 PDF

Availability: 395 pieces

Unit Price: ~~$0.74000~~

Current price of B82498F3681J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82498F3681J000 Specifications

Type	Description
Series:	SIMID
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	680 nH
Tolerance:	±5%
Current Rating (Amps):	190 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.7Ohm Max
Q @ Freq:	23 @ 50MHz
Frequency - Self Resonant:	300MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max):	0.055" (1.40mm)

Please confirm the specifications of the products when ordering.
