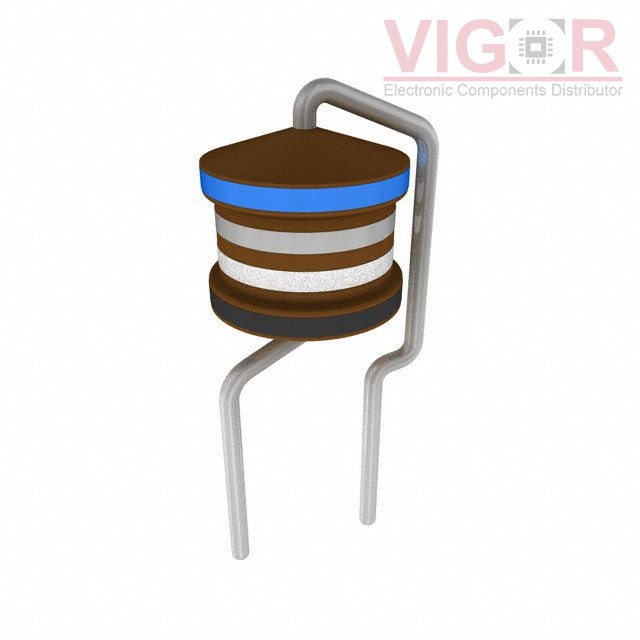

B78148E1681M000

Part No :: B78148E1681M000

Manufacturer: TDK EPCOS

Description: FIXED IND 680NH 4.6A 31 MOHM TH

Catalog: Fixed Inductors

DataSheet: B78148E1681M000 PDF

Availability: 1738 pieces

Current price of B78148E1681M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B78148E1681M000 Specifications

Type	Description
Series:	BC+
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	4.6 A
Current - Saturation (Isat):	7.1A
Shielding:	Unshielded
DC Resistance (DCR):	31mOhm Max
Q @ Freq:	60 @ 7.96MHz
Frequency - Self Resonant:	360MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial
Supplier Device Package:	-
Size / Dimension:	0.157" Dia (4.00mm)
Height - Seated (Max):	0.453" (11.50mm)

Please confirm the specifications of the products when ordering.
